Description of Corrugated Fiberboard

Corrugated Fiberboard, also known as corrugated board, is made of kraft paper or CCNB laminated with corrugated medium paper.

  1. Corrugated Fiberboard is available in different colors, including brown kraft board, white kraft board, and white CCNB laminated board.
  2. Corrugated Fiberboard is also available in different thicknesses, ranging from 1mm to 13mm. Different thicknesses have different flute codes. The corrugated board is composed of one or two outer plies (in brown or white), with 1-5 liner kraft paper and corrugated liner paper.
Single Face Of Corrugated Fiberboard

Single Face: One medium is glued to one flat sheet of liner board.

Single Wall Corrugated Fiberboard

Single Wall: The medium is between two sheets of liner board. Also known as Double Face.

Double Wall Corrugated Fiberboard

Double Wall: Three sheets of liner board with two mediums in between.

Triple Wall Corrugated Fiberboard

Triple Wall: Four sheets of liner board with three mediums in between.

Flute code available supply as below:

Flute Code Thickness Flute Code Thickness Flute Code Thickness
A flute 4 mm B flute 3 mm C flute 3.8 mm
E flute 2 mm F flute 1 mm AB flute 7 mm
BC flute 7.8 mm BE flute 5 mm EF flute 3 mm
ABB flute 10 mm AEF flute 7 mm BEF flute 6 mm

In conclusion, the thickness of the Corrugated Fiberboard affects its flexibility and buffering ability, as well as its rigidity. Thicker cardboard is suitable for packing light products and in serious shipping environments, while thinner material is ideal for packing heavy products with appropriate shipping conditions. For a single layer, the B flute is the most practical flute, while BE flute is suitable for a double-layer and the ABB flute for a triple-layer (single/double/triple layer is also referred to as single/double/triple wall).

Box Packing Solution always applies corrugated Fiberboard in a corrugated box, packaging material, and paper box inserts. Moreover, we are FSC certified box manufacturer. We care about the environment more than just business!

Applications of Corrugated Fiberboard

The following are some common applications of corrugated fiberboard in the packaging and printing industry:

  1. Shipping boxes: Corrugated fiberboard is commonly used to make shipping boxes due to its strength and durability. These boxes can protect products from damage during transportation.

  2. Point of purchase (POP) displays: Corrugated fiberboard is also used to make POP displays, which are used to promote products in retail stores. These displays can be customized with graphics and text to attract customers’ attention.

  3. Pizza boxes: Corrugated fiberboard is often used to make pizza boxes due to its ability to withstand high temperatures.

  4. Protective packaging: Corrugated fiberboard can be used to make protective packaging such as corner and edge protectors, as well as cushioning material for fragile items.

  5. Retail packaging: Corrugated fiberboard can also be used for retail packaging such as product packaging, gift boxes, and other specialty packaging.

In addition to its versatility, corrugated fiberboard is also an eco-friendly option as it is made from recycled paper and is itself recyclable. It is also lightweight, which makes it a cost-effective option for shipping and storage.

Overall, corrugated fiberboard is a popular choice in the packaging and printing industry due to its strength, durability, versatility, and eco-friendliness.

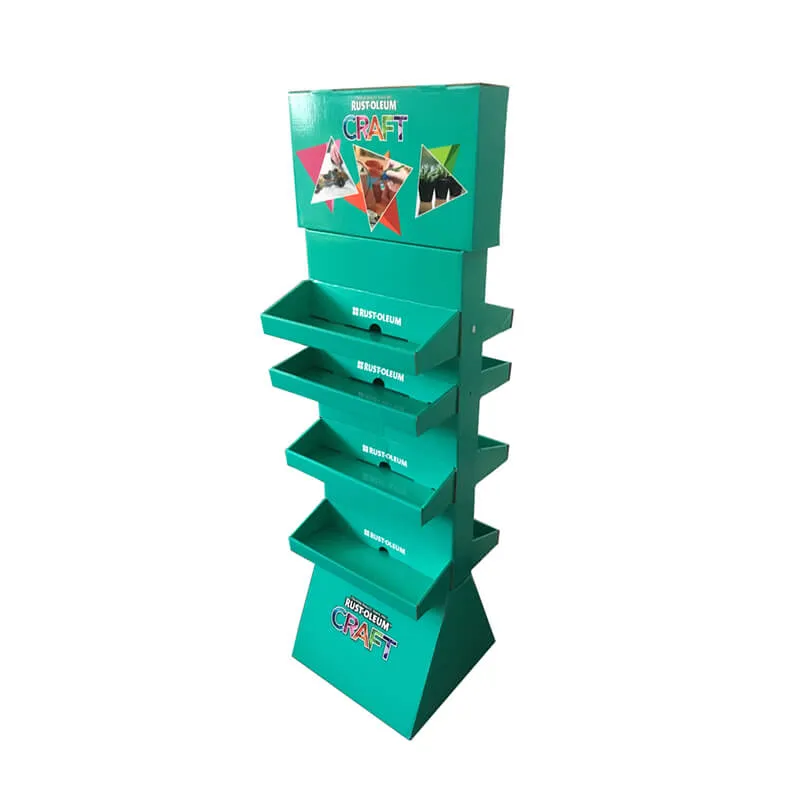

Corrugated Fiberboard Made Floor Display Stands

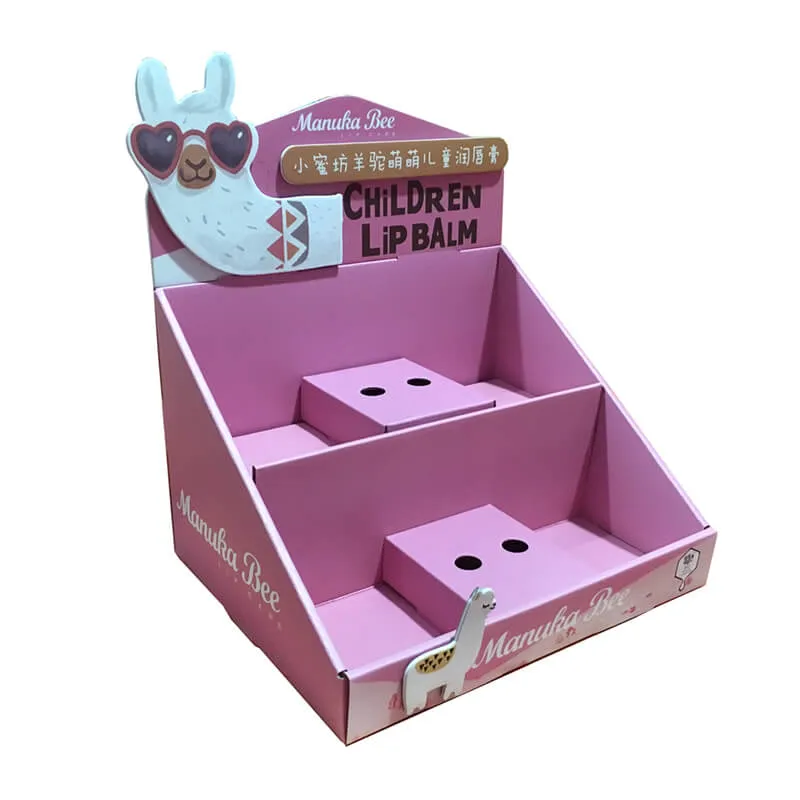

Corrugated Fiberboard Made Display Box

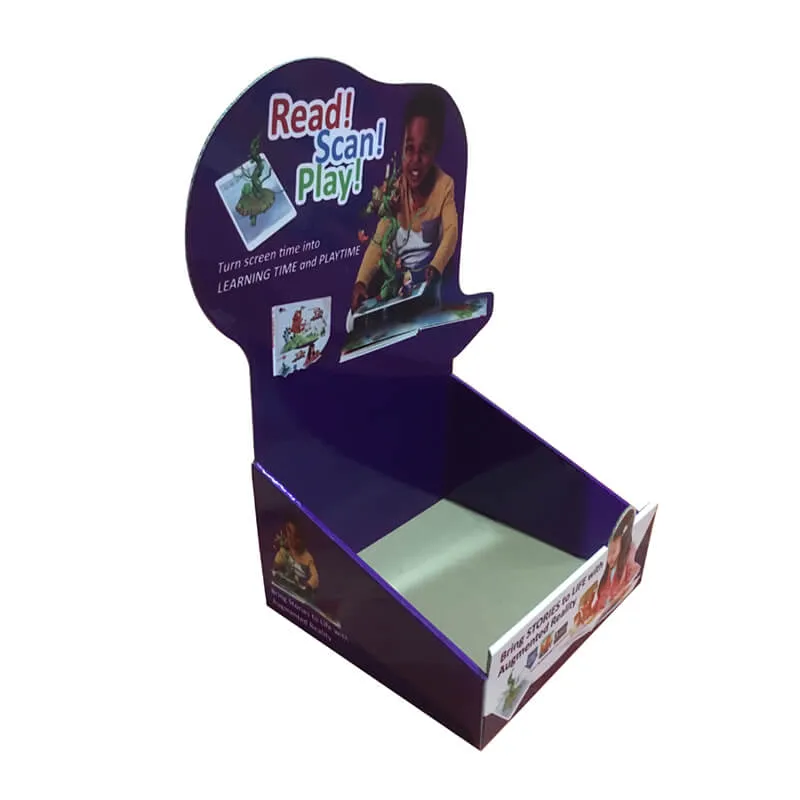

Corrugated Fiberboard Made Counter Top Display Box

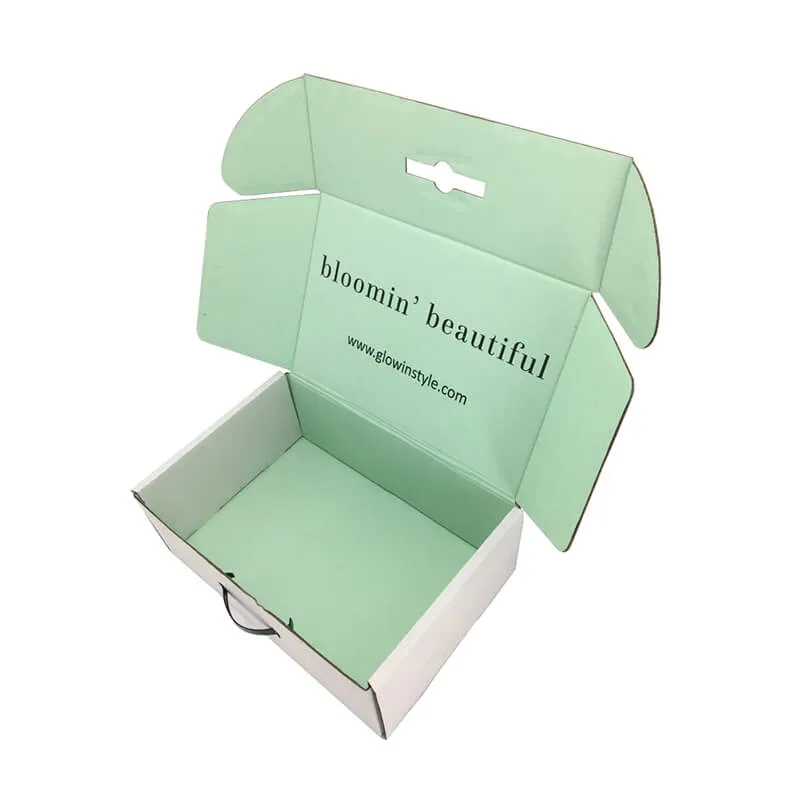

Corrugated Fiberboard Made Box For Clothes Shipping

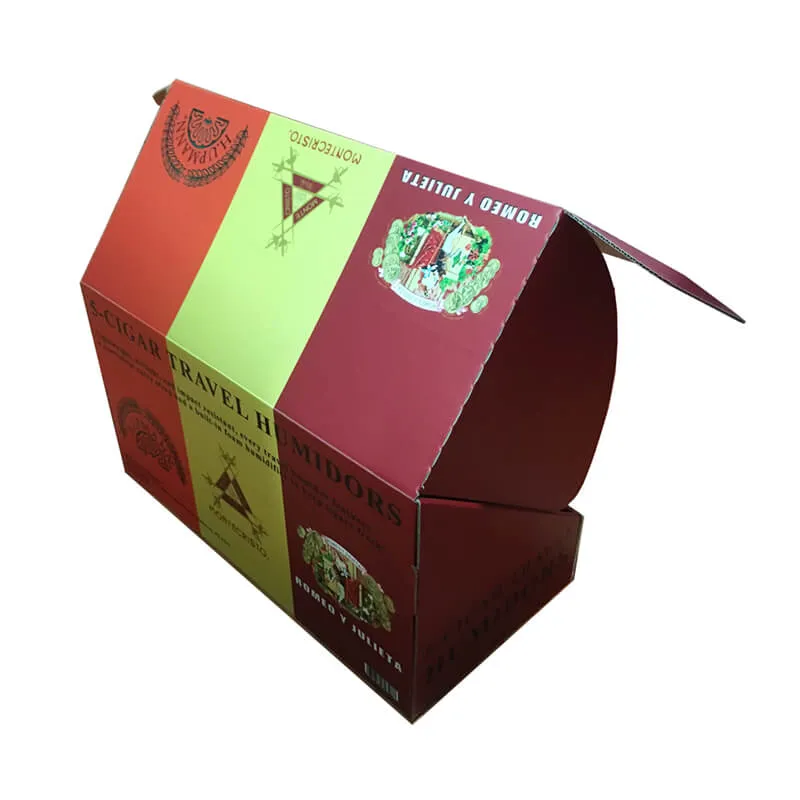

Corrugated Fiberboard For Cigar Humidors

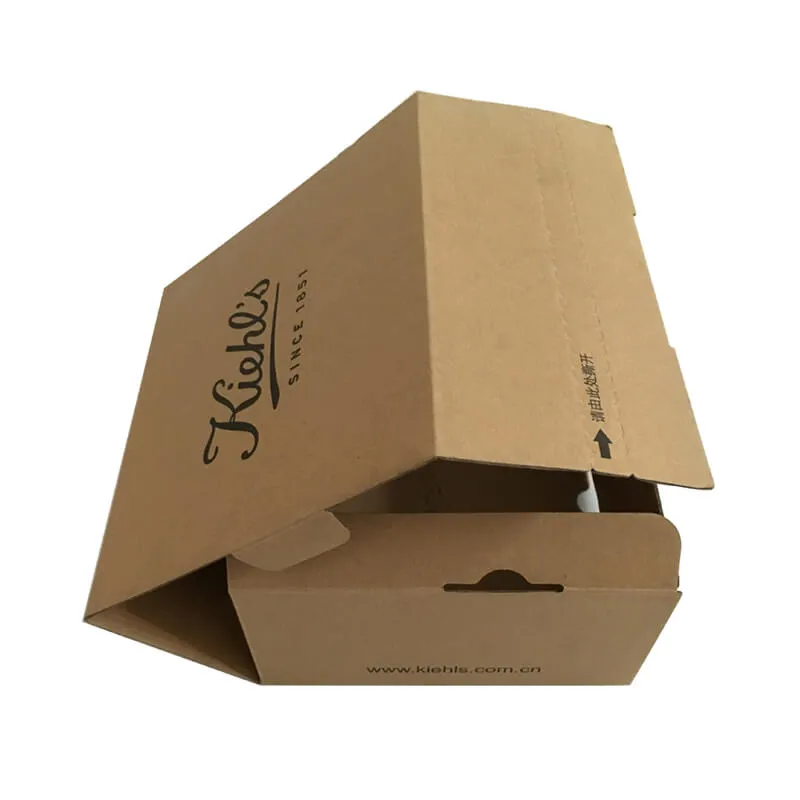

Corrugated Fiberboard Box For Cosmetic Industry

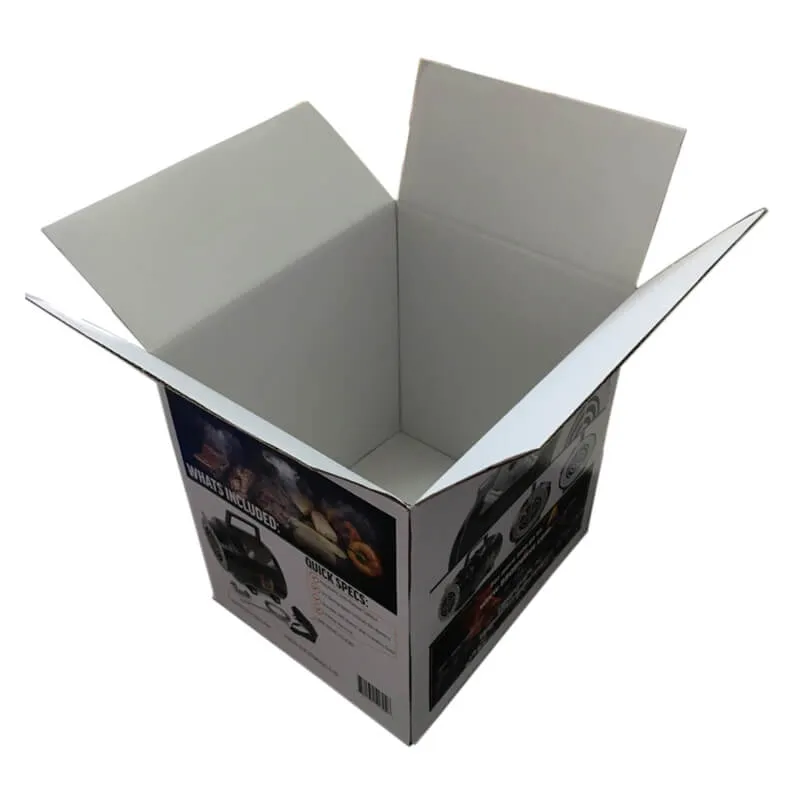

Corrugated Fiberboard In Corrugated Box
Corrugated Fiberboard Box For Apparel Shipping

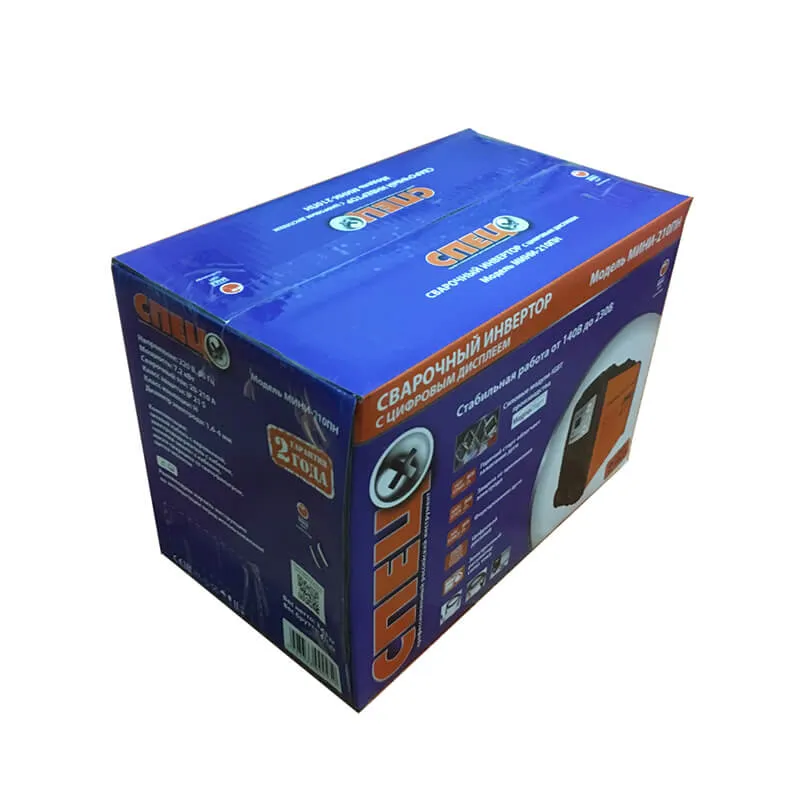

Corrugated Fiberboard Made Shipping Carton
Corrugated Fiberboard Made Cardboard Stadium

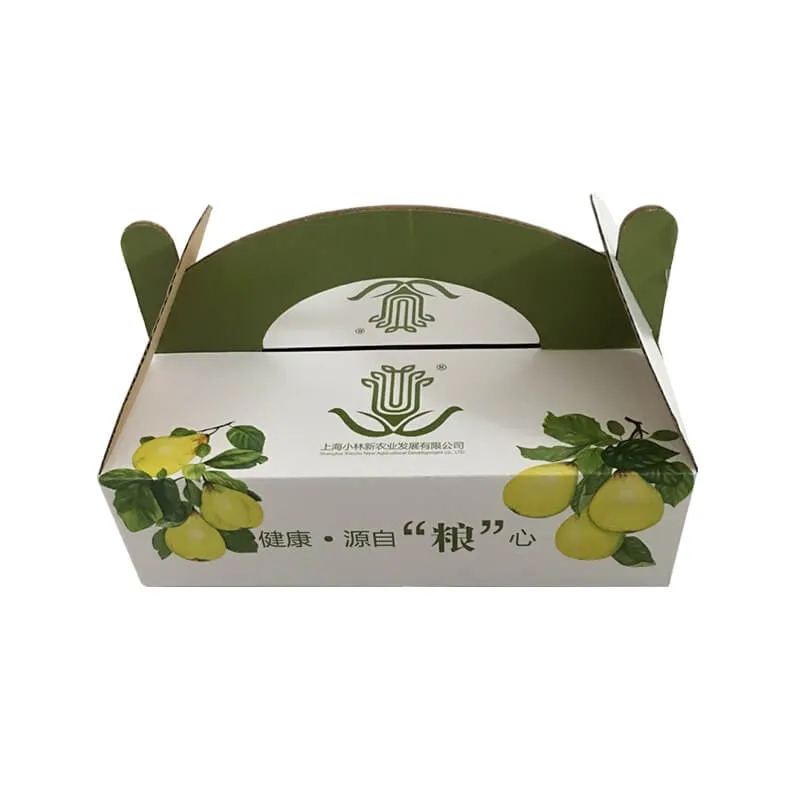

Corrugated Fiberboard Box For Fresh Fruits
Corrugated Fiberboard Made Plants Model

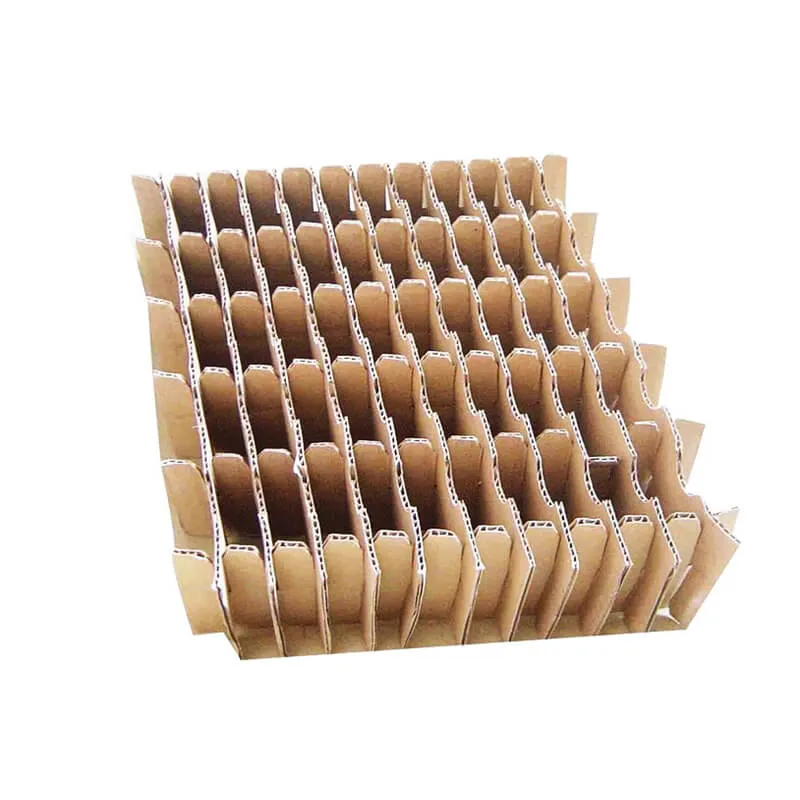

Corrugated Fiberboard Made Paper Box Inserts

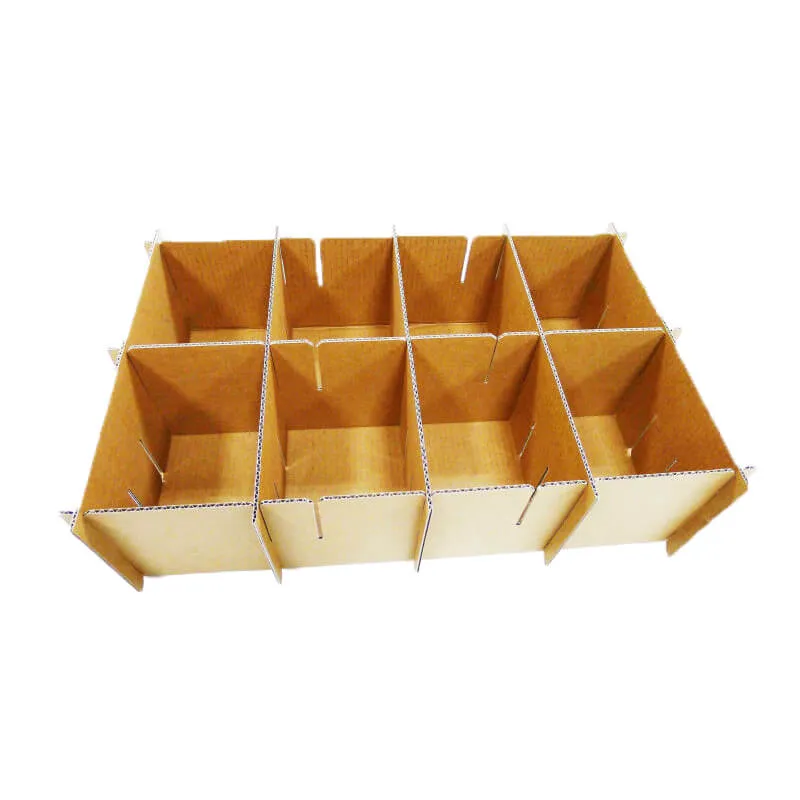

Corrugated Fiberboard Made Paper Box Dividers

Corrugated fiberboard also can be produced to cat scratch board, wine box, and cardboard padding material. We keep updated with the world, apply those excellent ideas and tech to our customer, shake hands with us, win value to your company!

Printing And Finishing Method

For brown Kraft board, we typically use flexo printing, although some customers may request offset printing to make it appear more eco-friendly. If water and moisture resistance is required, we can apply plastic film lamination or varnishing.

For white Kraft corrugated fiberboard, we typically use CMYK flexo printing, although the colors may not be as vibrant as with offset printing. Lamination, varnishing, and hot foil stamping are all accepted.

For white CCNB laminated board, we typically use CMYK offset printing, although unique Pantone colors are also accepted. We accept all print finishing options.
